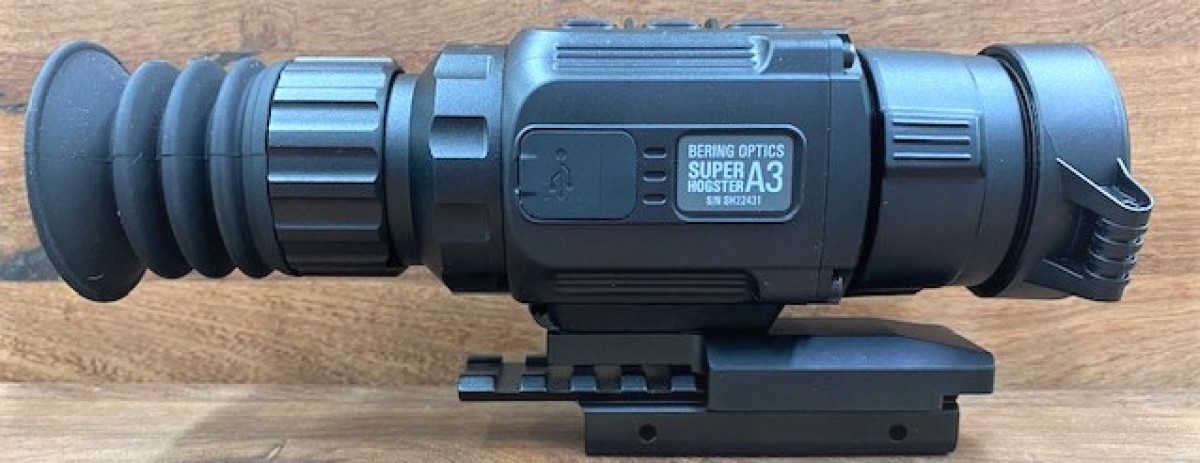

SUPER HOGSTER A3 2.9-11.6x35mm 12um Ultra-compact Thermal Weapon Sight, VOx 384x288 core resolution, 50Hz refresh rate with a QR tactical lockable mount



The Bering Optics SUPER HOGSTER A3 2.9-11.6x35 Thermal Weapon Sight is designed to appeal to consumers who desire more features and capabilities. The Superb Germanium optics paired with an advanced 12µm Vanadium Oxide (VOx) uncooled thermal core and proprietary electronics are the heart of this powerful LWIR spectral, all-environment system.

SUPER HOGSTER features an intuitive, user-friendly menu to customize settings to the shooter’s needs without disengaging from the target, including BDC and Crosshair reticles along with White, Black, Red, and Colored image polarization. There are a picture-in-picture and zeroing calibration memory functions, digital compass and inclinometer to further enhance the user experience.



The sight is exceptionally lightweight, compact and .308 Cal. tested. It comes with a quick-release (QR) mount that makes the mounting on any type of rifle, equipped with the Weaver rail, quick and easy. The sight compactness makes it suitable for use as a handheld imager for scouting purposes.



The scope is nitrogen-purged, water-resistant, dust- and shock-proof, and is action-ready in any environment or light conditions. SUPER HOGSTER is suitable for use in colder temperatures thanks to the unique built retaining its heat and keeping the cold-sensitive elements warm, virtually making it a great universal choice for any demanding user.



FEATURES



• Superior for hogs and predator control at medium- and long-range distances
• Picture-in-Picture function- 2X multiplied image on a top of the display
• Automatic shatter based thermal VOx core with Auto- or Manual calibration
• Switchable image polarity: White Hot / Black Hot / Red Hot / Colored Hot
• 8 reticle patterns including 3 BDC reticles
• 4 color options for each reticle pattern
• Manual control of the image sharpness and screen brightness
• Ability to save 4 profiles of zeroing calibration data
• Stradiametric Rangefinder function to estimate the distance to the targets of known size
• A precise lens focusing mechanism
• Option to power by rechargeable 3.7V accumulators
• 5V DC external power supply option via a Type C USB port
• Blind Pixel repair tool
• Standby mode
• Digital Compass
• Inclinometer
• Battery status indicator
• Weaver mount
• Nitrogen purged
• Video out
• 16Gb internal memory
• Built-in internal recording function in .mp4 (video) and .jpeg (photos) formats
• Wi-Fi capable- allows media recording to the mobile device (Super Hogster App is required)
• Quick-release (QR) mount (BE43045)
• Quick-release (QR) tactical lockable mount (BE43045T)
• 4 years warranty on parts and labor



KIT INCLUDES



• SUPER HOGSTER VOx 384x288 12µm Thermal Sight
• Video-out or external power supply Type C USB cable
• QD Weapon Mount
• Two Lithium CR123 batteries
• Front lens protective cap
• Eyepiece rubber eye guard
• Soft Carrying Case
• Lens Cleaning Cloth
• Instructions manual





SPECIFICATION



Product Modification	SUPER HOGSTER 35mm
Optical Magnification, x	2.9
Digital Multiplication	2X, 3X, 4X
Objective Lens system	35mmF/1.1
Angular FOV at Optical Magnification (horizontal x vertical), degrees	H 7.5° x  V5.7°
Linear FOV at Optical Magnification @ 100yrds/90m (Horizontal x Vertical), yd/m	H 13.1 / 11.7 x V 10 / 9
Eye relief, mm	40mm
Focus range, yard	1  to infinity
Diopter Adjustment, D	-5 ; +5
Reticle W/E adjustment value at a distance of 100m, in/cm	0.67”/ 1.71cm increment per pxl
Core resolution, pxl	384x288
Pixel pitch, µm	12
Start-up time, min., sec.	8
Thermal Sensitivity (NETD), mK	<40
Display type and resolution, pxl	FLCOS 768x576
Detection Range, yd (Target size: Running Hog L16 & H19), approx., yd/m	1100 / 1000
Dimensions, in/mm	7.7”x2.83”x2.36” / 195x72x60
Weight without mount and batteries, but with eyepiece and lens cap, oz/g	17.14 / 486
Power supply	3V CR123 (two) or 3.7V rechargeable (two) or 5V DC
Estimated battery life, hours	4 from two 3V CR123
Operating temperature, typical, °F	-14°F to +122°F
Water intrusion	IP67
Humidity, %	up to 96%

Manufacturer	Bering Optics
UPC	850032134125
